Description
Typical Application
It is widely used in spectrometer, chromatograph, mass spectrometer, night vision devices and other devices. It is also applied to the fields of medical and chemical industry, security inspection, scientific instruments, communication and transportation, scientific research, national defense, etc.

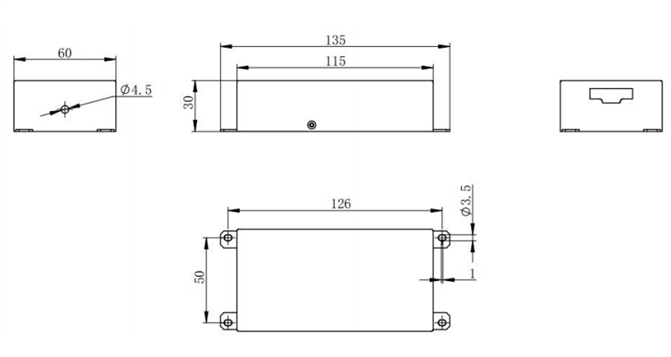

Shape, Structure and Size
Specifications
| Parameters | Description | ||
| Input voltage (typical) | +24VDC±2V | ||
| Output voltage | 0~20kV | ||
| Output current | 1mA | ||
| Output power | 20W | ||
| Ripple and noise | The minimum ripple peak to peak value is less than 0.02% of rated output voltage under rated load | ||
| Voltage regulation | The minimum rate is less than 0.01% within the range of the maximum input voltage under rated load | ||
| Load regulation | When the input voltage is constant, the minimum load is less than 0.01% from no-load to rated load | ||
| Rise time | 20 ~ 1000ms | ||
| Time drift | ≤ 0.01% / 8h (30 minutes after being powered on) | ||
| Temperature drift | ≤25ppm/℃ (operating temperature: 0℃ ~ +65℃) | ||
| Reference voltage output | Vref：+5VDC±1% | ||
| Voltage monitoring | 0 ~ +5VDC corresponds to 0 ~ 100% rated output, Zout=470 Ω, display accuracy: ±1% | ||
| Current monitoring | 0 ~ +5VDC corresponds to 0 ~ 100% rated output, Zout=470 Ω, display accuracy: ±1% | ||
| Output voltage control mode | Potentiometer | External (≥10K Ω) multi-circle potentiometer | |
| External control voltage | 0 ~ +5VDC, linearity: ±1% | ||
| Start-stop function | High level (≥3V) or off when hanging; Start at low level (≤0.7V) | ||
| Grounding method | The control is grounded together with the input and output, and the shell is grounded | ||
| Protection method | Current limiting | ||
| Port outbound mode | Input and control terminal | Outlet mode: XHB9P type plug terminal; Standard lead length 200mm | |
| High voltage outlet | Outlet mode: direct outlet mode; Standard lead length is 1000mm | ||
| Operating temperature | -25 ° C ~ + 65 ° C (Industrial) | ||
| Storage temperature range | -45 ° C ~ + 85 ° C (Industrial) | ||
| Relative humidity | 20% ~ 85% (non-condensing) | ||
| Dimensions | 115*60*30mm | ||
Pin Function Definition
| Pin | Function definition | Pin | Function definition |
| Vin (red) | Power supply input | R/S (brown) | Start/stop |
| GND (black) | Input ground | Vdis (purple) | Voltage monitor |
| SGND (black) | Control ground | Idis (orange) | Current monitor |
| Vadj (yellow) | Control voltage | HGND (white) | Output ground |
| Vref (green) | Reference voltage | Output (red) | High voltage output |
Wiring diagram
Notes:
1. The potentiometer adjustment mode must use high precision multi circle potentiometer with resistance ≥ 10K Ω
2. The external control voltage regulation mode must use DC control voltage with high stability and low ripple
3. GND, SGND and HGND have already been connected internally and connected to the power supply shell
4. R/S Connects to TTL high and low levels
Control-output Curve Relationship
Main Precautions
- To ensure the technical indexes of high-voltage power supply and reduce mutual interference, it is recommended to use independent voltage power supply.
- When connecting with the external circuit, please ensure the accuracy of the connection and ensure there is no loose connection or short circuit, to avoid damaging the power supply and users’ equipment.
- Keep a certain insulation distance near the power output end to avoid high voltage arcing or ignition with surrounding components.
Ordering Information
Please Quote with Order Model Number:
| Line | Part # or Option # | Description |
| 1.1 | HVM-DU2-203.13P24 | DU2 HV Supply Module, output 0 to +20kV, 1mA, input 24V |
| 1.2 | HVM-DU2-203.13N24 | DU2 HV Supply Module, output 0 to -20kV, 1mA, input 24V |
(Many customized specifications are available upon request)
